Chip：CC2530

Frequency：Zigbee3.0

TX Power：+20dBm

Antenna：PCB

Distance：1KM

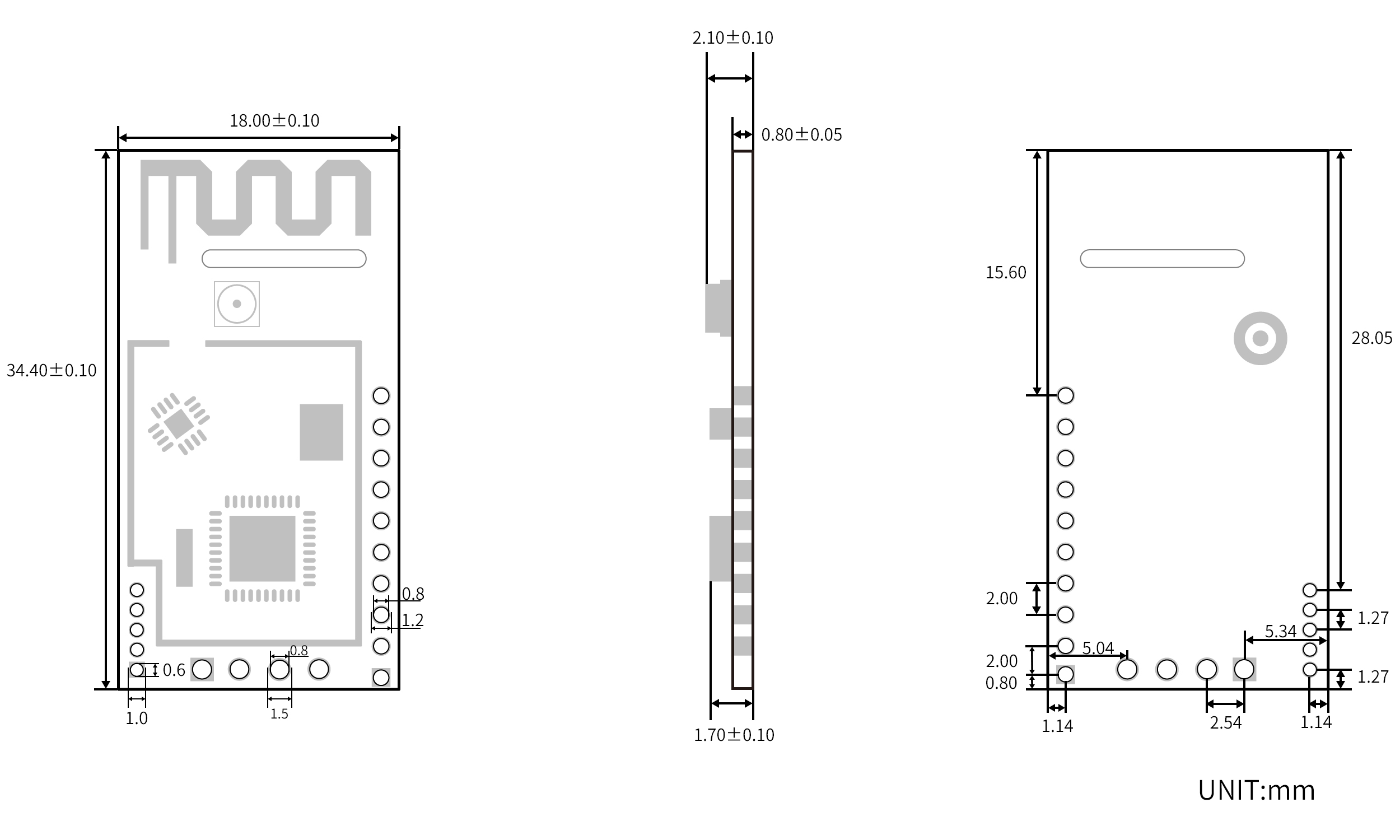

Dimension：34.4*18mm

Feature：High performance

Product introduction：XZZ-TIM2 adopts ZigBee module of imported CC2530 RF chip from TI company. The chip is integrated with 8051 single chip and wireless transceiver. It is suitable for ZigBee design and 2.4GHz IEEE 802.15.4 protocol. The module has built in the FEM chip of PA + LNA produced by skyworks, which extends the communication distance and enhances the communication stability. The module integrates clock crystal oscillator and is suitable for low-power scenarios.
