  • RC52810B

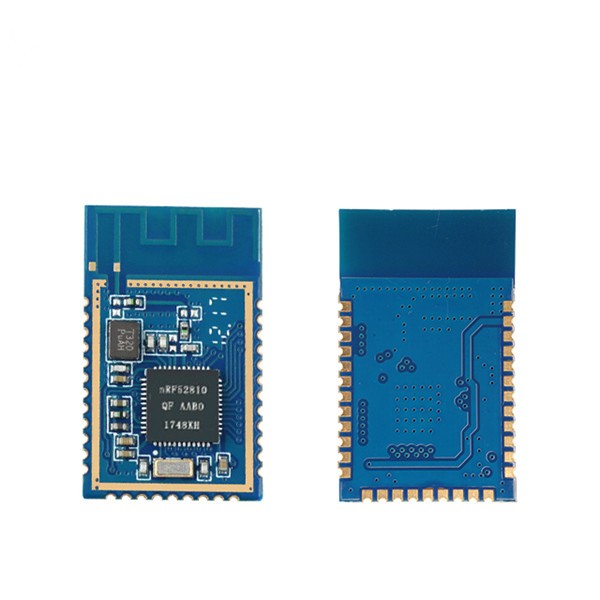

RC52810B

Chip:nRF52810

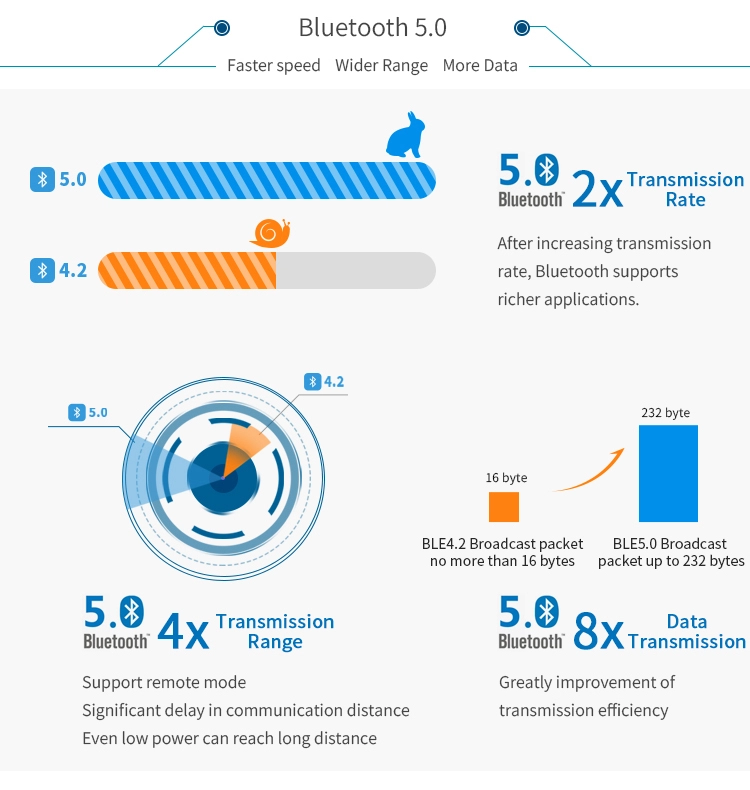

Frequency:BLE5.0

TX Power:+4dBm

Antenna:PCB

Distance:300m

Dimension:24.8*15mm

Feature:Low cost

Product introduction:RC52810B Bluetooth module is a low-power Bluetooth (ble) RF module, which can be widely used in the field of short-distance wireless communication. It has the characteristics of low power consumption, small size, long transmission distance and strong anti-interference ability. The module is equipped with a high-performance inverted F antenna.

describe

Cheap Long distance low power consumption BLE 4.2 Bluetooth module nrf52810

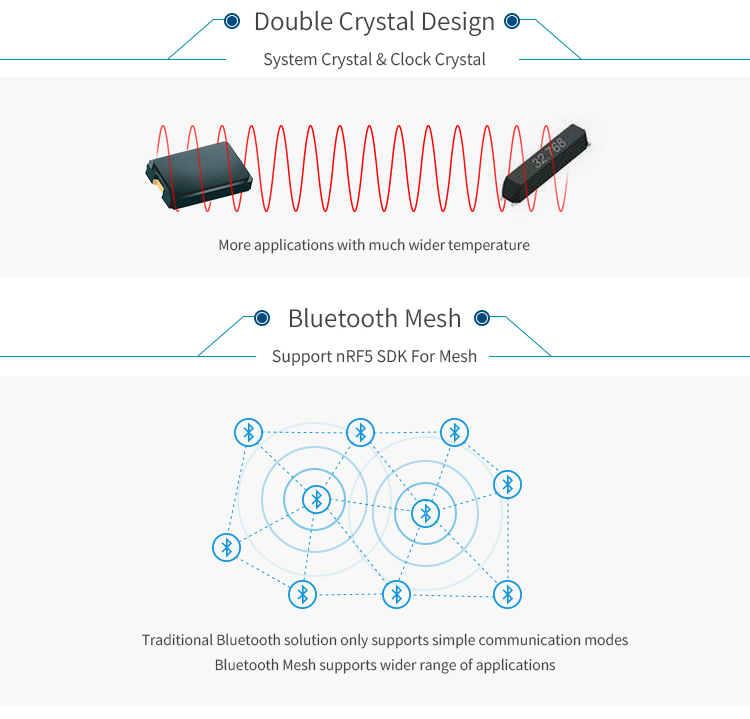

RC52810B is an RF module based on Nordic BLE SoC nRF52810QFAA. It integrates a 32.768 kHz and a 40 MHz crystal, an LC balun, an RF matching filter, and a meander line inverted-F PCB antenna. It features low power consumption, small size, robust connection distance, and rigid reliability. It supports BLE stack v5.0 and can be preprogrammed with a serial interface communication protocol for simple programming. 1.27-mm pitch stamp stick package for easy assembling and cost-effective PCB design.

Cheap Long distance low power consumption BLE 4.2 Bluetooth module nrf52810Cheap Long distance low power consumption BLE 4.2 Bluetooth module nrf52810

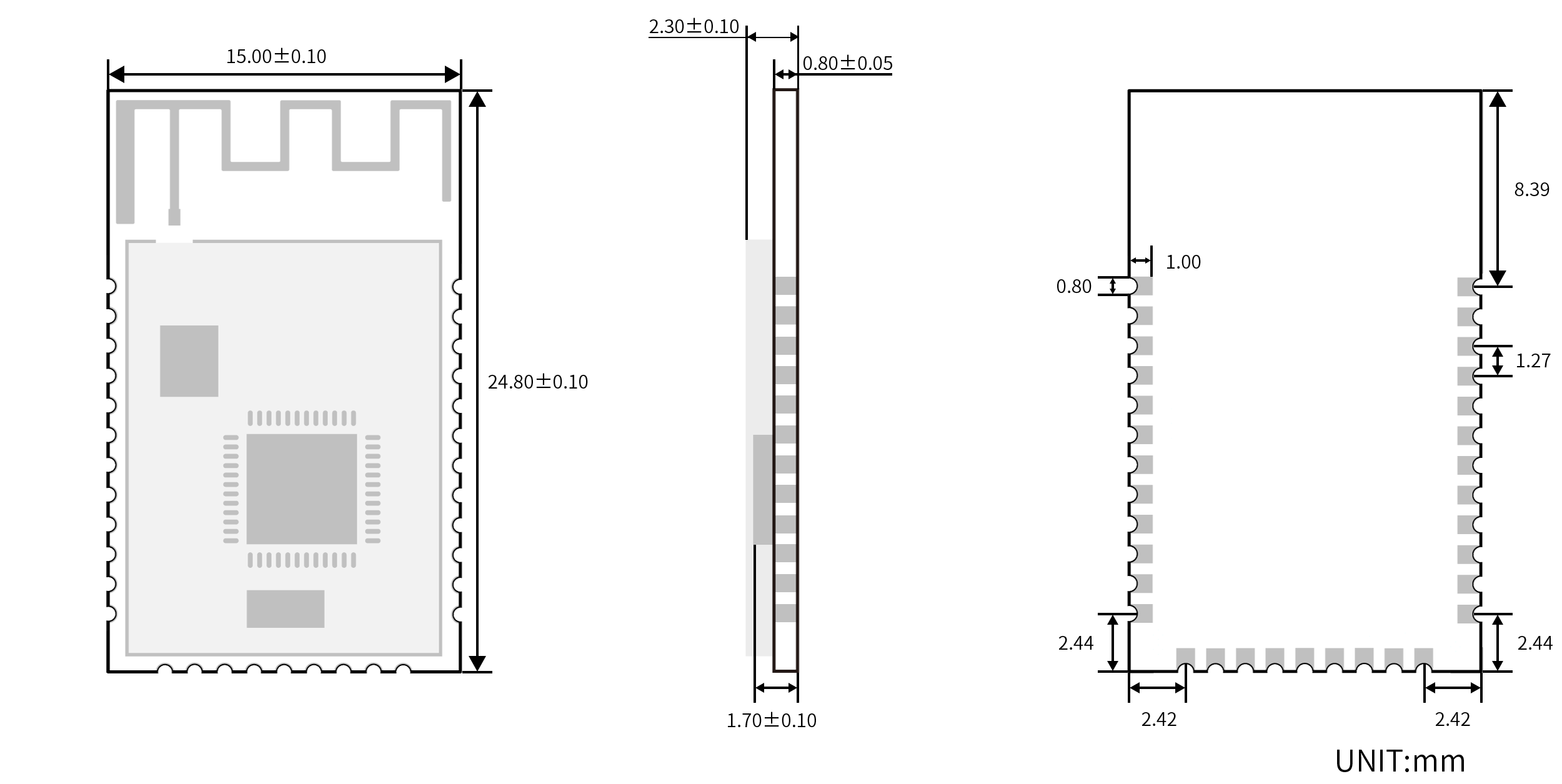

Recommended Footprint

图片关键词


Pin Attributes

图片关键词

Table 1. The Pin Diagram of RC52810B



Pin

Name

Chip Pin

Pin Type

Description

1

GND

GND

GND

GND

2

VCC

VCC

Power

Power supply 1.7 V ~ 3.6 V, Recommend 3.3 V

3

P21

P0_21/RESET

I/O

Reset

4

P22

P0_22

I/O


5

P23

P0_23

I/O


6

P24

P0_24

I/O


7

P25

P0_25

I/O


8

P28

P0_28/AIN4

I/O


9

P29

P0_29/AIN5

I/O


10

P30

P0_30/AIN6

I/O


11

P26

P0_26

I/O


12

P27

P0_27

I/O


13

P02

P0_2/AIN0

I/O


14

P03

P0_3/AIN1

I/O


15

P04

P0_4/AIN2

I/O


16

P05

P0_5/AIN3

I/O


17

P06

P0_6

I/O


18

P07

P0_7

I/O


19

P08

P0_8

I/O


20

P09

P0_9

I/O


21

P10

P0_10

I/O


22

P11

P0_11

I/O


23

P12

P0_12

I/O


24

P13

P0_13

I/O


25

P14

P0_14

I/O


26

P15

P0_15

I/O


27

P16

P0_16

I/O


28

SWDIO

JTAG SWD

I/O


29

SWCLK

JTAG CLK

I/O


30

P17

P0_17

I/O


31

P18

P0_18

I/O


32

P19

P0_19

I/O


33

P20

P0_20

I/O


BLE Application
