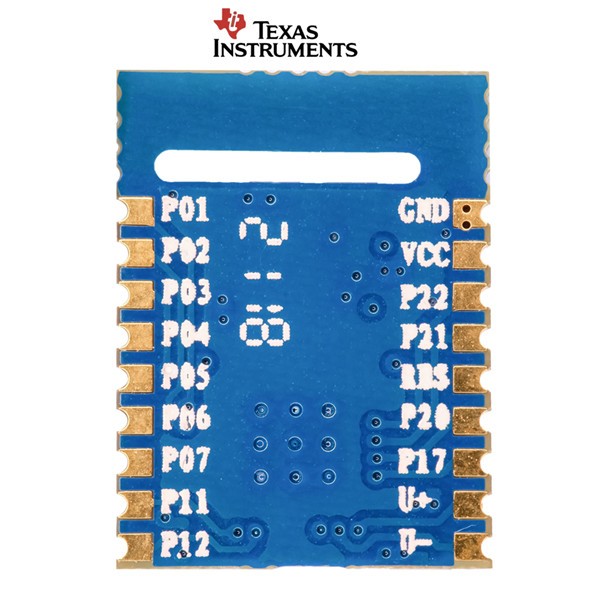

RC2541A

Chip:CC2541

Frequency:BLE4.0

TX Power:0dBm

Antenna:PCB

Distance:100m

Dimension:15*11mm

Feature:Low cost

Product introduction:RC2541A is a Bluetooth Low Energy (BLE) module based on TI CC2541F256, an 8051 core BLE System-on-Chip (SoC). This PCB module integrates a 32 MHz crystal, a 32.768 kHz crystal, an LC balun, an RF matching filter, and a meander line PCB antenna. It is pre-programmed with the BLE 4.0 stack and an application communication protocol over its full speed USB interface.

describe
Product Description


Recommended Footprint


图片关键词Pin Attributes

Pin

Name

Chip Pin

Pin Type

Description

1

GND

-

Power

GND

2

VCC

-

Power

Power supply 2.0 V ~ 3.6 V

3

P22

P2.2

I/O


4

P21

P2.1

I/O


5

RESET

RST

RESET


6

P20

P2.0

I/O


7

P17

P1.7

I/O


8

I2C_SCL

I2C_SCL

I/O

I2C_SCL

9

I2C_SDA

I2C_SDA

I/O

I2C_SDA

10

P12

P1.2

I/O


11

P11

P1.1

I/O


12

P07

P0.7

I/O


13

P06

P0.6

I/O


14

P05

P0.5

I/O


15

P04

P0.4

I/O


16

P03

P0.3

I/O


17

P02

P0.2

I/O


18

P01

P0.1

I/O



Packaging & Shipping
